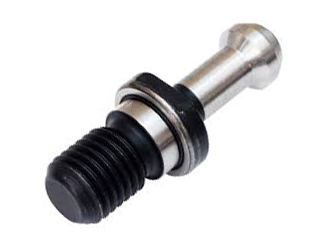

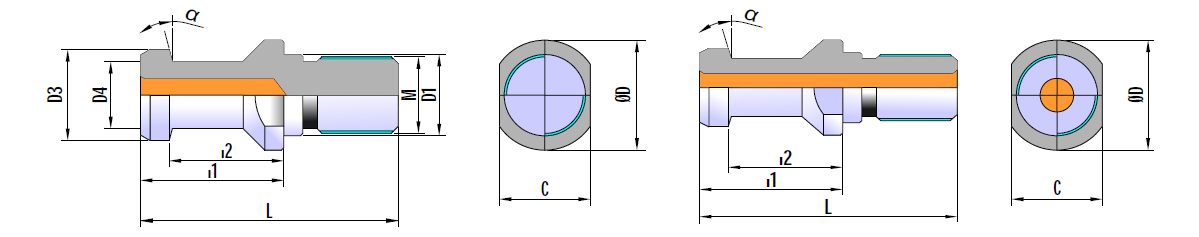

| Add/Remove | ITEM CODE | TYPE | a | G | L mm |
l1 mm |
l2mm |
D mm |
C mm |
d1 mm |
|||||
| QT/SP/30α | P/S - SK30 | 15° | M 12 | 44 | 24 | 19 | 17 | 14 | 13 | ||||||
| QT/SP/40α | P/S - SK40 | 15° | M 16 | 54 | 26 | 20 | 23 | 19 | 17 | ||||||
| QT/SP/50 | P/S - Sk50 | 15° | M 24 | 74 | 34 | 25 | 36 | 30 | 25 | ||||||
| Add/Remove | ITEM CODE | TYPE | a | G | L mm |
l1 mm |
l2mm |
D mm |
C mm |
d1 mm |
|||||
| QT/BP/30α | P/S - BT30 | 30°/45°/90° | M 12 | 43 | 23 | 18 | 16.5 | 13 | 12.5 | ||||||
| QT/BP/40α | P/S - BT40 | 30°/45°/90° | M 16 | 60 | 35 | 28 | 19 | 19 | 17 | ||||||
| QT/BP/50 | P/S - BT50 | 30°/45°/90° | M 24 | 85 | 45 | 35 | 38 | 30 | 25 | ||||||
