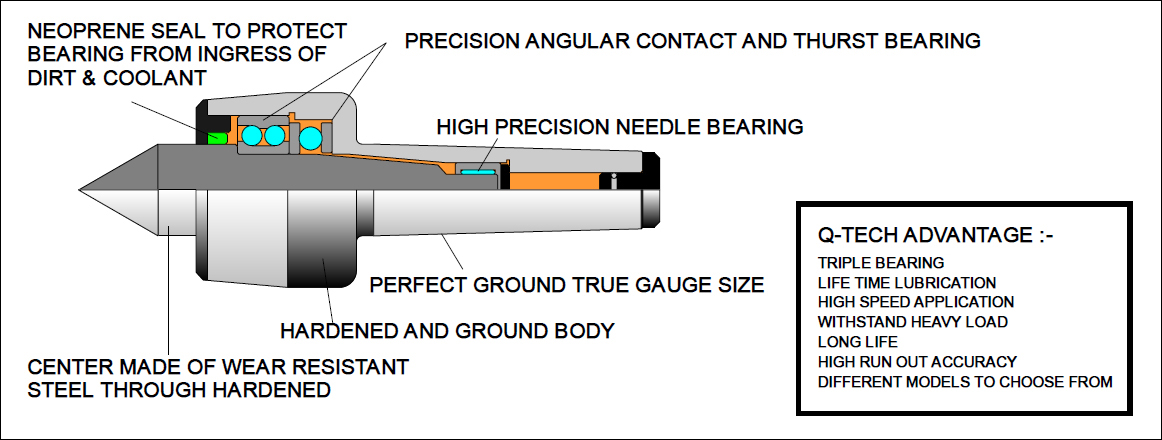

Q-TECH, precision live center is a finely engineered tool, using highest quality of raw material, bearing & lubricants. The body of the live centers is made of alloy steel through hardened, while the spindle is manufactured from bearing steel and through hardened to provide desired strength required in alive center spindle. To achieve greater stability and maximum rigidity, Q-tech live centers are supported by 3 bearings which are “life time lubricated” using ISOFLEX lubricants. The bearings are protected from the ingress of coolant or dirt by twin lip seal.
Q-TECH live centers are a must tool where high productivity, high component accuracy and cycle time are crucial.
Q-TECH PRECISION CNC LIVE CENTERS are available in three spindle points for different applications.
Q-TECH, rotary cover live centers incorporate a frictionless non - contacting labyrinth sealing system with permanent bearing protection from coolant and dirt. Since there is no tight fit rubber sealing, which creates heat these centers can run at a higher rpm.
Q-TECH, quad bearing mini body / slim body live centers are designed, where small shell of the live center is required. Designed with a combination of 4 bearing these live centers are available in standard and extended point only.
