Collet Chuck

TECHNICAL DATA

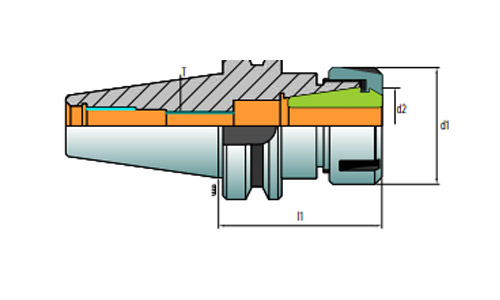

ITEM CODE TYPE/d2 - l1 Collet Range T Nut (d1)
QT/BC/3016070 BT30/ER16 - 70 0.5 - 10 M10 x 1.5 28
QT/BC/3020070 BT30/ER20 - 70 1.0 - 13 M12 x 1.75 34
QT/BC/3025070 BT30/ER25 - 70 1.0 - 16 M12 x 1.75 42
QT/BC/3032070 BT30/ER32 - 70 1.0 - 20 M12 x 1.75 50
QT/BC/3032100 BT30/ER32 - 100 1.0 - 20 M12 x 1.75 50
QT/BC/4016070 BT40/ER16 - 70 0.5 - 10 M10 x 1.5 28
QT/BC/4020070 BT40/ER20 - 70 1.0 - 13 M12 x 1.75 34
QT/BC/4025070 BT40/ER25 - 70 1.0 - 16 M12 x 1.75 42
QT/BC/4025100 BT40/ER25 - 100 1.0 - 16 M12 x 1.75 42
QT/BC/4032070 BT40/ER32 - 70 1.0 - 20 M12 x 1.75 50
QT/BC/4032100 BT40/ER32 - 100 1.0 - 20 M12 x 1.75 50
QT/BC/4032150 BT40/ER32 - 150 1.0 - 20 M12 x 1.75 50
QT/BC/4040080 BT40/ER40 - 80 1.0 - 20 M12 x 1.75 50
QT/BC/5032150 BT50/ER32 - 150 1.0 - 20 M12 x 1.75
QT/BC/5032150 BT50/ER32 - 150 1.0 - 20 M12 x 1.75 50
QT/BC/5032200 BT50/ER32 - 200 1.0 - 20 M12 x 1.75 50
QT/BC/5032250 BT50/ER32 - 250 1.0 - 20 M12 x 1.75 50
QT/BC/5040080 BT50/ER40 - 80 3.0 - 26 M12 x 1.75 63
QT/BC/5050100 BT50/ER50 - 100 1.0 - 34 M12 x 1.75 78
