FINE BORING BAR

---

Easy Handling

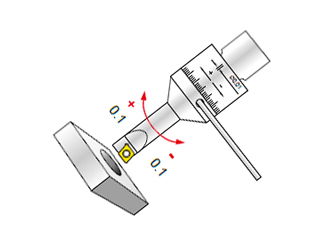

1. Each division 0.01mm shown on the tools, they are adjustable on the tool presetter or machine easily.
2. Total adjustment range ±0.1mm

Economic

1. Each division 0.01mm shown on the tools, they are adjustable on the tool presetter or machine easily.
2. Total adjustment range ±0.1mm

Application

1. Each division 0.01mm shown on the tools, they are adjustable on the tool presetter or machine easily.
2. Total adjustment range ±0.1mm

1. Q-TECH fine boring bars are best suitable for small boring application where high geometrical accuracies are required.
2. Indexable inserts allows variety of material to be cut with these boring bars.
3. The predefined boring tool has adjustment range of +/- 0.1mm.
4. Each graduation on the body is of 0.01mm on diameter.
5. It is available from 8mm to 40mm.
6. The tool mechanism is absolutely backlash free and is suitable to remove 0.25mm material radially.
