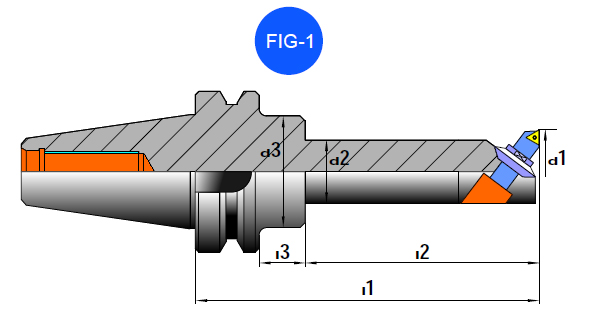

| Add/Remove | ITEM CODE | TYPE/MIN. BORE/-11 | d1 | I2 | I3 | D2 | D3 | MICRO BORE UNIT | FIG. | ||||||
| MIN | MAX | ||||||||||||||
| QT/BB/3019105 | BT30/BCA19-105 | 19 | 23 | 75 | 10 | 18 | 34 | M2B2F40 | 1 | ||||||
| QT/BB/3023105 | BT30/BCA23-105 | 23 | 29 | 85 | 5 | 22 | 34 | M3B2C06 | 1 | ||||||
| QT/BB/3029105 | BT30/BCA29-105 | 29 | 38 | 85 | 5 | 28 | 34 | M3A2C06 | 1 | ||||||
| QT/BB/4019120 | BT40/BCA19-120 | 19 | 23 | 86 | 4 | 18 | 44 | M2B2F40 | 1 | ||||||
| QT/BB/4019180 | BT40/BCA19-180 | 19 | 23 | 86 | 64 | 19 | 44 | M2B2F40 | 1 | ||||||
| QT/BB/4023150 | BT40/BCA23-150 | 23 | 29 | 105 | 4 | 22 | 44 | M3B2C06 | 1 | ||||||
| QT/BB/4023195 | BT40/BCA23-195 | 23 | 29 | 105 | 60 | 22 | 44 | M3B2C06 | 1 | ||||||
| QT/BB/4029150 | BT40/BCA29-150 | 29 | 38 | 115 | 5 | 28 | 44 | M3B2C06 | 1 | ||||||
| QT/BB/4029195 | BT40/BCA29-195 | 29 | 38 | 115 | 50 | 28 | 44 | M3B2C06 | 1 | ||||||
| QT/BB/4038150 | BT40/BCA238-150 | 38 | 46 | 115 | 5 | 35 | 44 | M5B2C06 | 1 | ||||||
| QT/BB/4038210 | BT40/BCA38-210 | 38 | 46 | 172 | 8 | 37 | 44 | M5B2C06 | 1 | ||||||
| QT/BB/4046150 | BT40/BCA46-150 | 46 | 66 | 115 | 5 | 41 | 55 | M5A2C06 | 1 | ||||||
| QT/BB/4046225 | BT40/BCA46-225 | 46 | 66 | 182 | 13 | 44 | 55 | M5A2C06 | 1 | ||||||
| QT/BB/4062165 | BT40/BCA62-165 | 62 | 87 | 135 | - | - | 51 | M7A2C09 | 2 | ||||||
| QT/BB/4062225 | BT40/BCA62-225 | 62 | 87 | 184 | 11 | 57 | 62 | M7A2C09 | 1 | ||||||
| QT/BB/4083120 | BT40/BCA83-120 | 83 | 108 | - | - | - | 63 | M7A2C09 | 2 | ||||||
| QT/BB/4083165 | BT40/BCA83-165 | 83 | 108 | - | - | - | 63 | M7A2C09 | 2 | ||||||
| QT/BB/4083225 | BT40/BCA83-225 | 83 | 108 | - | - | - | 63 | M7A2C09 | 2 | ||||||
| QT/BB/5019135 | BT50/BCA19-135 | 19 | 23 | 86 | 6 | 18 | 44 | M2B2F40 | 1 | ||||||
| QT/BB/5019210 | BT50/BCA19-210 | 19 | 23 | 86 | 81 | 18 | 44 | M5B2C06 | 1 | ||||||
| QT/BB/5023150 | BT50/BCA23-150 | 23 | 29 | 105 | 2 | 22 | 44 | M3B2C06 | 1 | ||||||
| QT/BB/5023225 | BT50/BCA23-225 | 23 | 29 | 105 | 77 | 22 | 44 | M3B2C06 | 1 | ||||||
| QT/BB/5029165 | BT50/BCA29-135 | 29 | 38 | 115 | 7 | 28 | 44 | M3A2C06 | 1 | ||||||
| QT/BB/5029225 | BT50/BCA29-225 | 29 | 38 | 115 | 67 | 28 | 44 | M3B2C06 | 1 | ||||||
| QT/BB/5038165 | BT50/BCA38-165 | 38 | 46 | 115 | 7 | 35 | 55 | M5B2C06 | 1 | ||||||
| QT/BB/5038225 | BT50/BCA38-225 | 38 | 46 | 172 | 10 | 35 | 55 | M5B2C06 | 1 | ||||||
| QT/BB/5046165 | BT50/BCA46-165 | 46 | 66 | 115 | 7 | 41 | 55 | M5A2C06 | 1 | ||||||
| QT/BB/5046225 | BT50/BCA46-225 | 46 | 66 | 182 | - | 44 | - | M5A2C06 | 1 | ||||||
| QT/BB/5046255 | BT50/BCA46-255 | 46 | 66 | 206 | 6 | 22 | 55 | M5A2C06 | 1 | ||||||
| QT/BB/5062180 | BT50/BCA62-180 | 62 | 87 | 137 | - | - | 51 | M7A2C09 | 2 | ||||||
| QT/BB/5062240 | BT50/BCA62-240 | 62 | 87 | 184 | 13 | 57 | 70 | M7A2C09 | 1 | ||||||
| QT/BB/5062330 | BT50/BCA62-330 | 62 | 87 | 280 | 7 | 59 | 70 | M7A2C09 | 1 | ||||||
| QT/BB/5083165 | BT50/BCA83-165 | 83 | 108 | 122 | - | - | 63 | M7A2C09 | 2 | ||||||
| QT/BB/5083240 | BT50/BCA83-240 | 83 | 108 | 190 | 7 | 70 | 90 | M7A2C09 | 1 | ||||||
| QT/BB/5083345 | BT50/BCA83-345 | 83 | 108 | 302 | - | 76 | - | M7A2C09 | 1 | ||||||
| QT/BB/5098165 | BT50/BCA98-165 | 98 | 142 | 122 | - | - | 83 | M10A2C09 | 2 | ||||||
| QT/BB/5098240 | BT50/BCA98-240 | 98 | 142 | 197 | - | - | 83 | M10A2C09 | 2 | ||||||
| QT/BB/5098345 | BT50/BCA98-345 | 98 | 142 | 302 | - | 92 | - | M10A2C09 | 1 | ||||||
